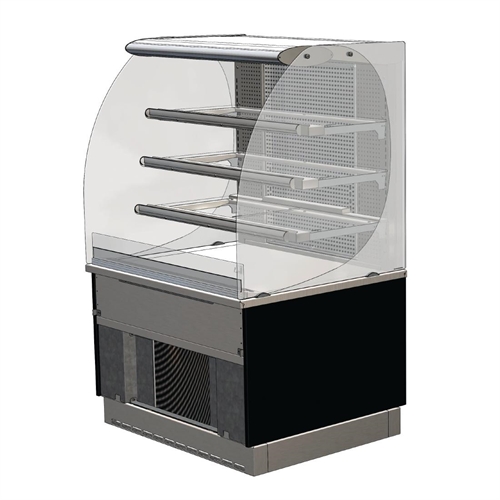

Designline Drop In Slimline Multideck with Rear Door 600mm

Description

Illuminate, chill and display food or drink with CED’s free standing, elliptical Designline cold patisserie display (Rear Doors). This energy efficient display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. This rear loading open fronted patisserie is designed for use in a free standing position as a grab and go solution ( with optional front fascia panel fitted ) or accomodated within a cut out space in a servery counter run ( with ventilation holes needed in the fascia panel for the underslung refrigeration condensing unit ). A stainless steel serve over canopy and toughened side glass protection are provided to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features diffused lighting, product stop and 40mm tall ‘point of sale’ display/ticket strips. The 570mm x 570mm long cold deck area below the shelves provides further chilled merchandising. Additional product illumination is also provided by diffused lighting in the elliptical profile gantry. An eye level digital temperature display and ‘temperature lockable’ control panel is fitted to operator side of the display. The patisserie has 24 hour operation & holds food core between 2 – 5 deg. C. Display area features a double glazed hinged rear door for restocking and the self service superstructure is made from bright polished steel and alluminum curved profiles. Removable deck plates in the chilled patisserie make for easier deep cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with locking castors that have a combined adjustable central foot for levelling, foot adustment spanner, steel kickplinths and a 2m lead and 3 pin UK plug top. (1.47KW/13a/230v electrical supply ).

• Colour:Chrome & Black
• Dimensions:1467(H) x 600(W) x 750(D)mm
• Material:Curved Toughened Glass Stainless Steel and Aluminium
• Power Type:1.47kW 230V 13A
• Refrigerant:R290
• Temperature Range:2°C to 5°C
• Voltage:230V
• Warranty:1 Year
• Weight:145kg
• Curved gantry in bright polished steel & aluminium profile with toughened glass side panels. Black powder coated steel base unit. ( Fascia panel optional )
• Features 3 chilled toughened glass display shelves with adjustable height and angle
• The 600mm long deck display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
• Freestanding for self service application. (1 hinged rear door to display)
• Each chilled shelf features diffused lighting product stop and 40mm tall ‘point of sale’ display/ticket strip
• Gantry is fitted with stainless steel serve over canopy and side glass protection to the customer side of the display
• Additional product illumination from diffused lighting within the elliptical profile gantry
• Curved glass profile is designed to complement other units within the Designline range
• Features eye level gantry mounted digital temperature display and control panel (to customer side of display)
• Complete with locking castors that have a combined adjustable central foot for levelling foot adjustment spanner steel kick plinths and a 2m lead and 3 pin UK plug top
• Special-to-order. Non-returnable
• Drinks display examples: water beer fruit juice. Food display examples : Pies pasties sausage rolls sandwich fillings cheese baguettes rolls pastries & fruit
• 3-4 weeks
