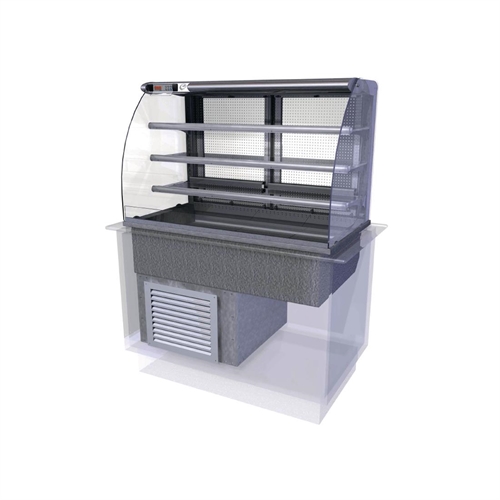

Designline Drop In Multideck with Rear Doors 1175mm

Description

Illuminate, chill and display refrigerated food or drink with CED’s elliptical shaped Designline self help cold multideck ( Rear Doors ). This energy efficient 3/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The rear loading multideck is designed for use in a free standing countertop and fitting the air grills supplied, provide the ventilation needed for the underslung refrigeration condensing unit. Toughened side glass protection provides protection to the customer side of the display. The display area features 3 no. chilled toughened glass display shelves, adustable in both height and angle, providing increased cold product display area within a minimum footprint. The front edge of each chilled shelf features a product stop and 40mm tall ‘point of sale’ display/ticket strip. The 3/1 Gn cold well area below the shelves provides further chilled merchandising. Product illumination is from diffused lighting in the elliptical profile gantry. The gantry also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to operator side of the display. The multideck has 24 hour operation & holds food core between 2 – 5 deg. C. The display area has double glazed rear hinged doors and the self help superstructure is made from bright polished steel and alluminum elliptical profiles. Modular removable deck plates in the chilled multideck make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. (1.73KW/13a/230v electrical supply ).

• Capacity:3 x 1/1 GN
• Colour:Chrome
• Dimensions:750(H) x 1175(W) x 660(D)mm
• Material:Curved Toughened Glass Stainless Steel and Aluminium
• Power Type:1.73kW 230V 13A
• Refrigerant:R290
• Temperature Range:2°C to 5°C
• Voltage:230V
• Warranty:1 Year
• Weight:165kg
• Elliptical gantry in bright polished steel & aluminium toughened glass side panels
• Features 3 chilled toughened glass display shelves with adjustable height and angle
• The 3/1 GN well display area & shelves are chilled by energy efficient hydrocarbon refrigerant (r290)
• Assisted service. (Rear doors)
• Each chilled shelf features product stop and 40mm tall ‘point of sale’ display/ticket strip
• Gantry is fitted with toughened side glass protection to the customer side of the display
• Product illumination is from diffused lighting in the elliptical profile gantry
• Curved glass profile is designed to complement other units within the Designline range
• Ventilation grills and installation lifting kit are supplied with the display together with a 2m lead for connection to a single 13 amp socket
• Drinks display examples: bottled or canned drinks water lemonade wine juice. Food display examples : Pies pasties sausage rolls baguettes rolls cakes & fruit
• Special-to-order. Non-returnable
• 3-4 weeks
