Designline Drop In Cold Well Self Service 1525mm

Description

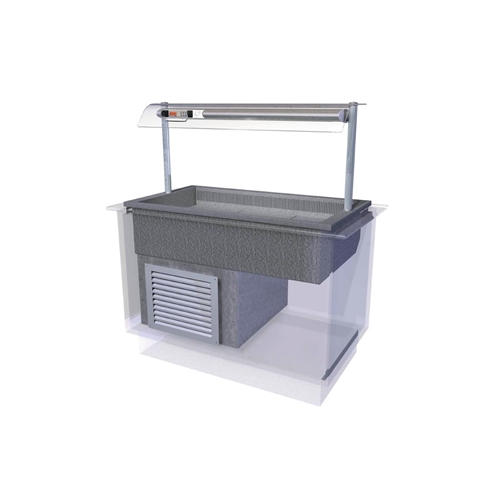

Illuminate, chill and protect refrigerated food or drink with CED’s elliptically shaped Designline self help cold well drop in display. This energy efficient 4/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination is from diffused lighting in the elliptical profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard & holds food core between 2 – 5 deg. C. Modular removable deck plates in the chilled island well make for easier cleaning & an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separatley.

• Capacity:4 x 1/1 GN
• Colour:Chrome
• Dimensions:535(H) x 1525(W) x 660(D)mm
• Material:Curved Toughened Glass Stainless Steel and Aluminium
• Power Type:1.46kW 230V 13A
• Refrigerant:R290
• Temperature Range:2°C to 5°C
• Voltage:230V
• Warranty:1 Year
• Weight:131kg
• Curved display in bright polished steel and aluminium profile
• The 4/1 Gn well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
• Gantry fitted with curved toughened glass sneeze screen for food protection
• Self help application
• Features eye level gantry mounted digital temperature display & control panel ( to operator side of display) * Controls can be fitted to customer side of the display on request*
• 24 hour operation as standard
• Product illumination is provided from diffused lighting within the gantry
• Curved glass profile is designed to complement other units within the Designline range
• Ventilation grills and installation lifting kit are supplied with the display together with a 2m lead for connection to a single 13 amp socket
• (Cold well area) Drinks display examples: bottled canned or carton drinks water beer lager fruit juice. Food display examples: Pies pasties sandwich fillings rolls fruit
• 3-4 weeks
