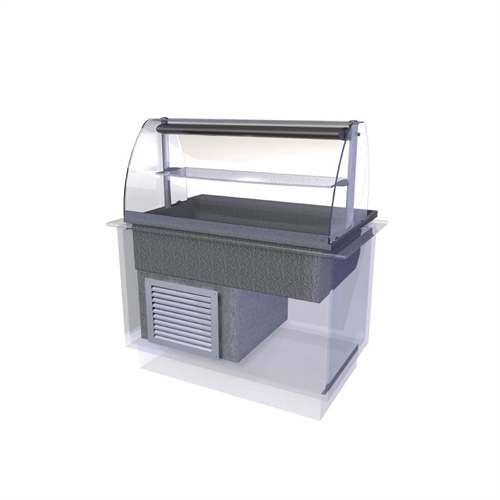

Designline Drop In Chilled Deli Serve Over Counter 1525mm

Description

Illuminate, chill and protect refrigerated food or drink with CED’s elliptically shaped Designline assisted service cold deli drop in display. This energy efficient 4/1 Gn size refrigerated display chills by hydrocarbon refrigerant (r290) – a solution that’s kinder to the environment and your budget. The display fits into a countertop and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The superstructure is made from bright polished steel and alluminum curved profiles, with curved & toughened full height front and side glass. The front glass tilts forward on a locking hinge, for effortless cleaning access. Product illumination is from diffused lighting in the elliptical profile gantry, which also houses an eye level digital temperature display and ‘temperature lockable’ control panel, to the operator side of the display. The display has 24 hour operation as standard & holds food core between 2 – 5 deg. C. Modular removable deck plates in the chilled well make for easier cleaning & an Integral condensate water evaporator eliminates the need for site drainage. Optional chopping boards fit over the rear display shelf providing a local sandwich preparation area. Additional ambient display space is also provided by a toughened glass mid shelf within the display area. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN’s Sold Separatley.

• Capacity:4x 1/1 GN
• Colour:Chrome
• Dimensions:535(H) x 1525(W) x 784(D)mm
• Material:Curved Toughened Glass Stainless Steel and Aluminium
• Power Type:1.46kW 230V 13A
• Refrigerant:R290
• Temperature Range:2°C to 5°C
• Voltage:230V
• Warranty:1 Year
• Weight:156kg
• Curved display in bright polished steel and aluminium profile
• The 4/1 Gn well display area is chilled by energy efficient hydrocarbon refrigerant (r290)
• Gantry fitted with curved full height toughened glass sneeze screen and side glass for food protection. Glass tilts forward in a locking hinge for ease of cleaning
• Assisted service application
• Features eye level gantry mounted digital temperature display & control panel ( to operator side of display)
• 24 hour operation as standard
• Product illumination is provided from diffused lighting within the gantry
• A single ambient glass mid shelf provides additional merchandising space
• Curved glass profile is designed to complement other units within the Designline range
• Ventilation grills and installation lifting kit are supplied with the display together with a 2m lead for connection to a single 13 amp socket
• (Cold well area) Drinks display examples: canned drinks water wine f ruit juice. Food display examples: Pies pasties sausage rolls sandwich fillings rolls pasta
• (Ambient shelving area) : Food display examples : muffins donuts biscuits fruit chocolate crackers rice cakes tacos crisps nuts. * Sandwiches baguettes rolls
• 3-4 weeks
