Designline Drop In Ceran Glass Hotplate HP4

Description

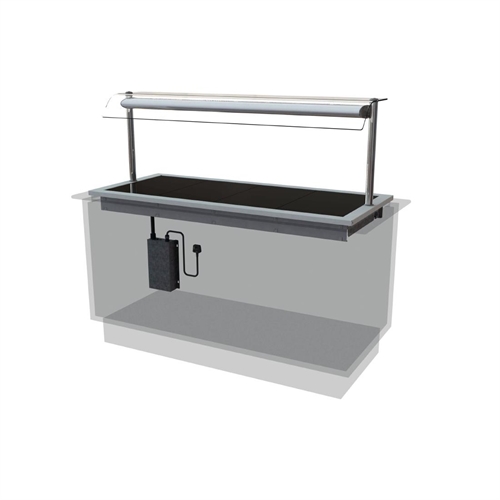

Display, illuminate, heat and protect pre-cooked food with CED’s elliptically shaped Designline self help ceran glass hotplate drop in display. This 4/1 Gn size hot display features a 4/1Gn heated ceran glass area which accept various sized Gn flat bottomed dishes and containers. The display fits into a pre-formed cut out made in a countertop . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & ‘locked’ from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN’s Sold Separatley.

• Capacity:4 x 1/1 GN
• Colour:Chrome
• Dimensions:535(H) x 1525(W) x 660(D)mm
• Material:Curved Toughened Glass Stainless Steel and Aluminium
• Power Type:2.6kW 230V 13A
• Temperature Range:85°C to 110°C
• Voltage:230V
• Warranty:1 Year
• Weight:64kg
• Curved display in bright polished steel and aluminium profile
• Features a flat heated ceran glass dish presentation area heated evenly from underneath by individual heater mat elements
• Product illumination/ surface heat is provided by infra red quartz heat lamps to each 1/1Gn area. Lamps are housed within an elliptical profile gantry and mid shelf
• Gantry fitted with curved toughened sneeze screen glass for food protection
• Self help application
• 24 hour operation as standard.
• Features gantry mounted digital temperature display base heat control panel and top heat control by dimmer switch. (to operator side of display)
• Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead
• Curved glass profile is designed to complement other units within the Designline range
• 3-4 weeks
